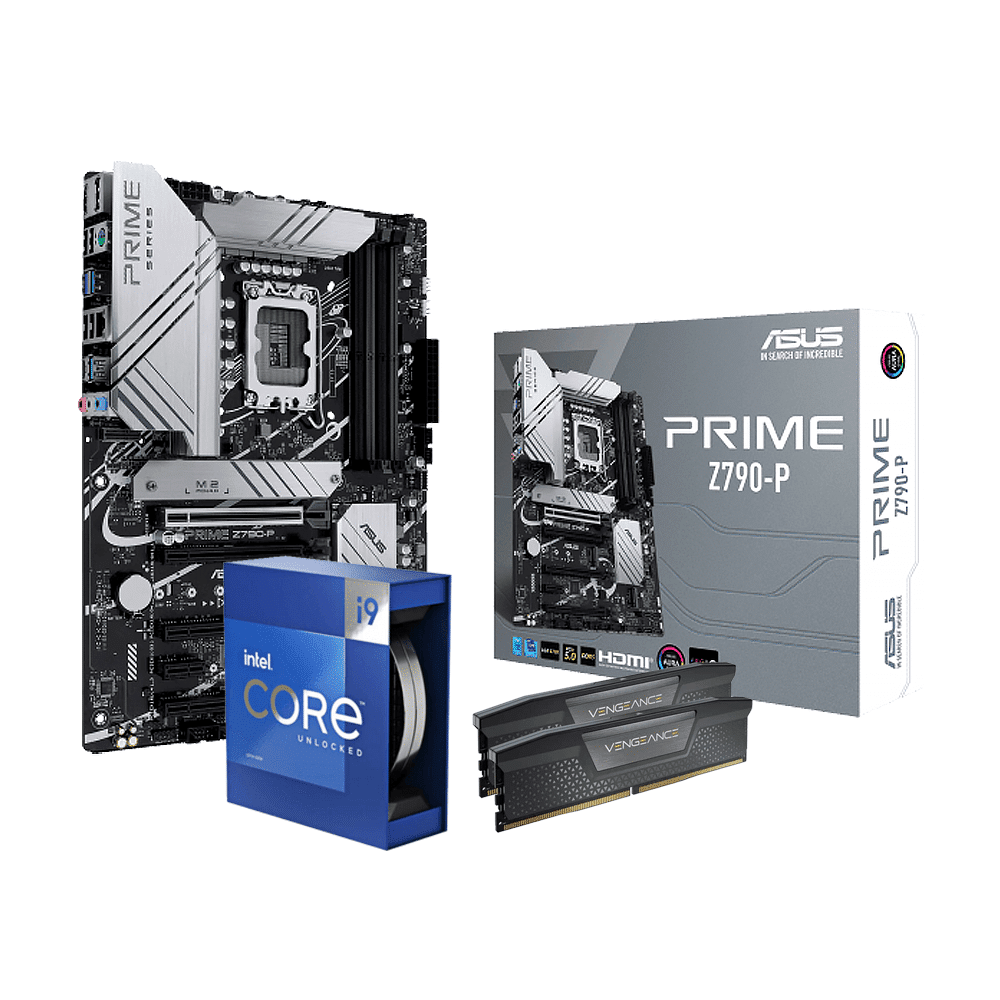

ASUS Prime Z790-P / 64GB DDR5 5600Mhz Ram / Intel Core i9 13900K – Upgrade Bundle – CPO

Asus Prime Z790-P, ATX Form Factor-

Intel Z790 Chipset- Socket LGA 1700-

4x DDR5 DIMM Slots, Supports Up To 128GB- Supports Up to DDR5-7200MHz (OC)-

Supports Intel XMP 3.0 Memory Profiles-

1x PCIe 5.0 x16 Slot-

3x PCIe 4.0 x4 Slots-

1x PCIe 3.0 x1 Slot-

2x M.2 22110 PCIe 4.0 x4 NVMe SSD Slot-

1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot-

4x SATA 3.0 6.0Gbps Ports-

1x USB 3.2 Gen 2×2 20Gbps Type-C Port-

1x USB 3.2 Gen 2 10Gbps Type-A Port-

2x USB 3.2 Gen 1 5Gbps Type-A Ports-

4x USB 2.0 Type-A,

1x PS/2 Combo Port-

1x HDMI 2.1,

1x DisplayPort 1.4-

3x 3.5mm Audio Jacks (Line Out, Line In, Microphone)- I

ntel I225-V 2.5 Gigabit Ethernet RJ-45 LAN-

Realtek 7.1 Surround Sound CODEC-

Asus Aura RGB Sync- Asus Q-LED Diagnostic Array-

Asus Armoury Crate Software

DDR5 5600Mhz (2 x 32GB)

Specifications:

CPU Model: Intel Core i9-13900K (13th Gen)

CPU Socket: LGA 1700

Manufacturing Process: 10 nm

Maximum CPU Configuration: 1S

Maximum Number of PCIe Lanes: 16 (Revision 5.0), 4 (Revision 4.0)

Unlocked: Yes

Number of Cores: 24 (8 x P-Cores + 16 x E-Cores)

Number of Threads: 32

Base Clock Speed: P-Core: 3 GHz, E-Core: 2.2 GHz

Maximum Boost Speed: P-Core Turbo: 5.4 GHz, E-Core Turbo: 4.3 GHz

L3 Cache: 36 MB

Maximum Capacity: 128 GB

Memory Support: DDR5 Up to 5600 MHz, DDR4 Up to 3200 MHz

ECC Memory: Yes

Channel Architecture: Dual Channel

Maximum Memory Bandwidth: 89.6 GB/s

Optane Memory Support: Yes

Integrated Graphics
Integrated Graphics: Intel UHD Graphics 770

Maximum Resolution Support: 7680 x 4320 at 60 Hz

Supported APIs: DirectX: 12, OpenGL: 4.5

Number of Displays: 4

Output Support: DisplayPort, HDMI

Base Clock Speed: 300 MHz

Maximum Boost Speed: 1.45 GHz
